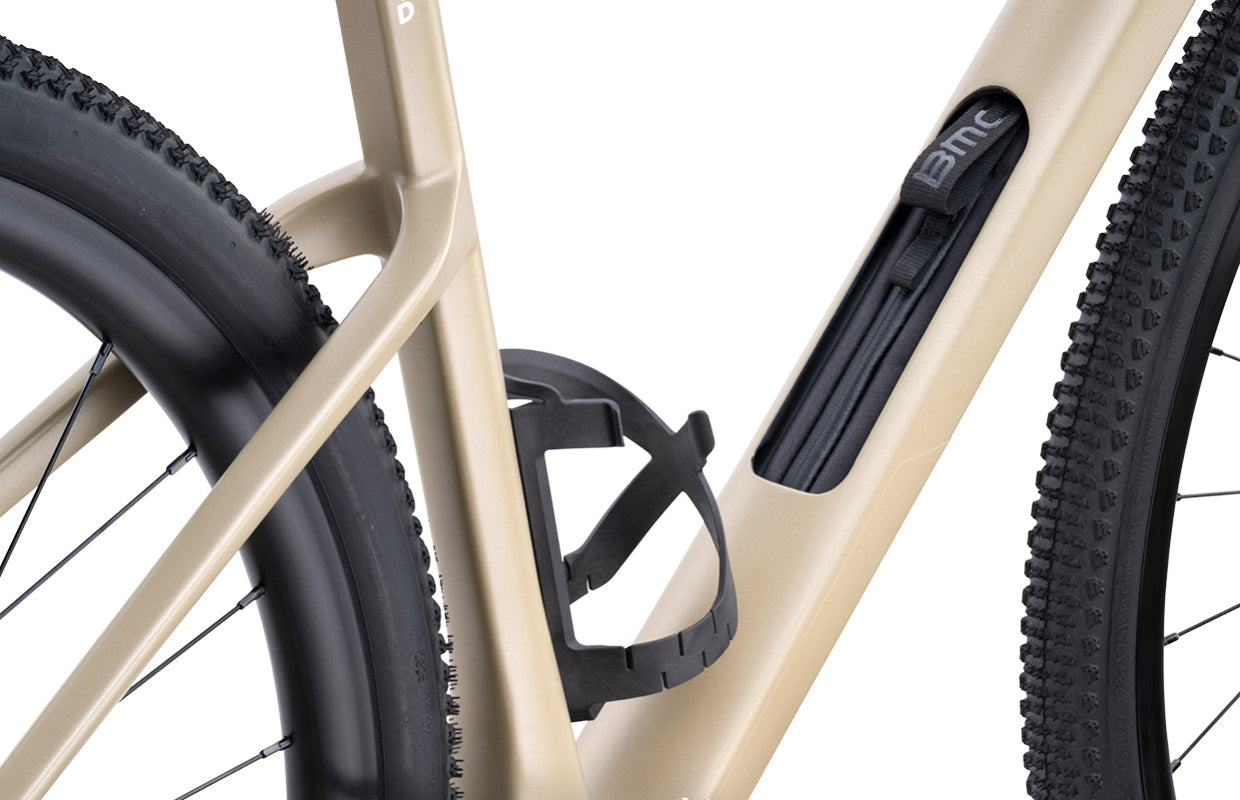

Downtube storage

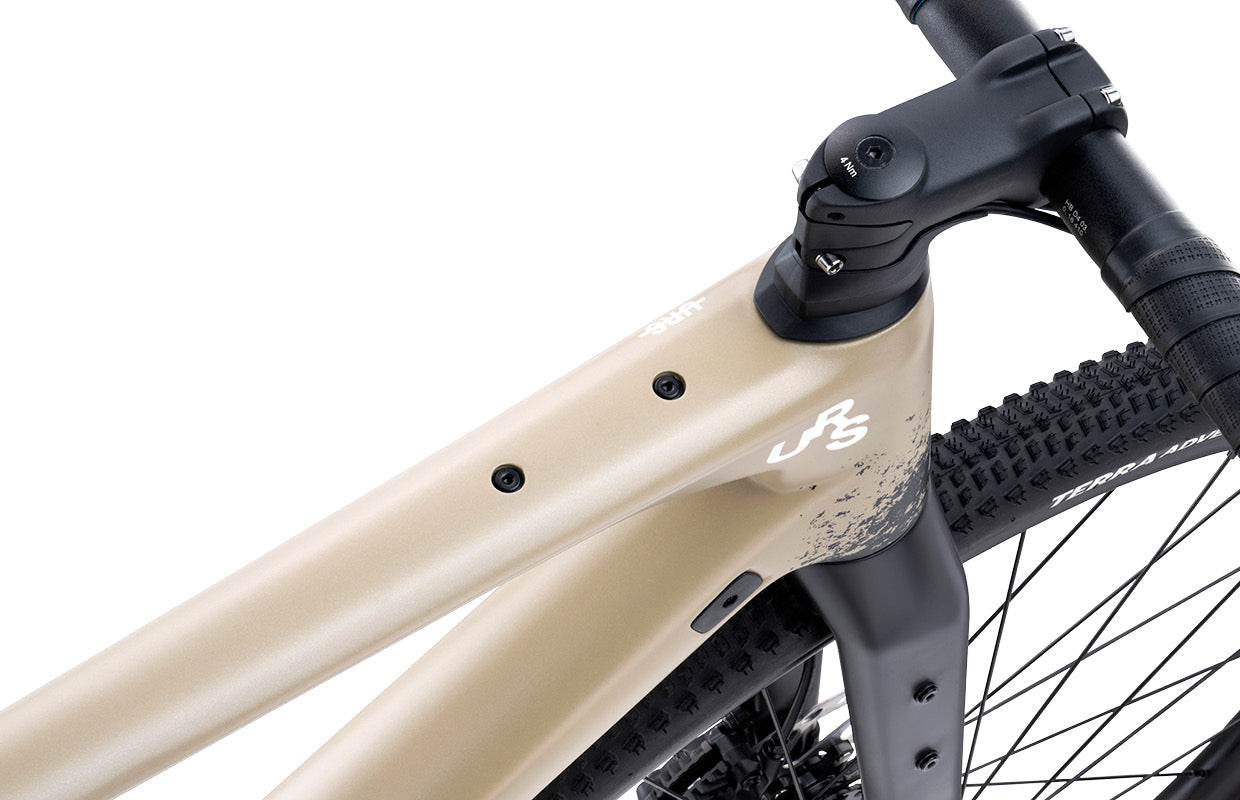

innovationCargo Mounts
All-terrain adventures often require extra gear. That is where a wide array of cargo mounts come in. Fork, top tube, downtube, you’ve got it. Just imagine what side quests you can get into on your next adventure gravel ride.

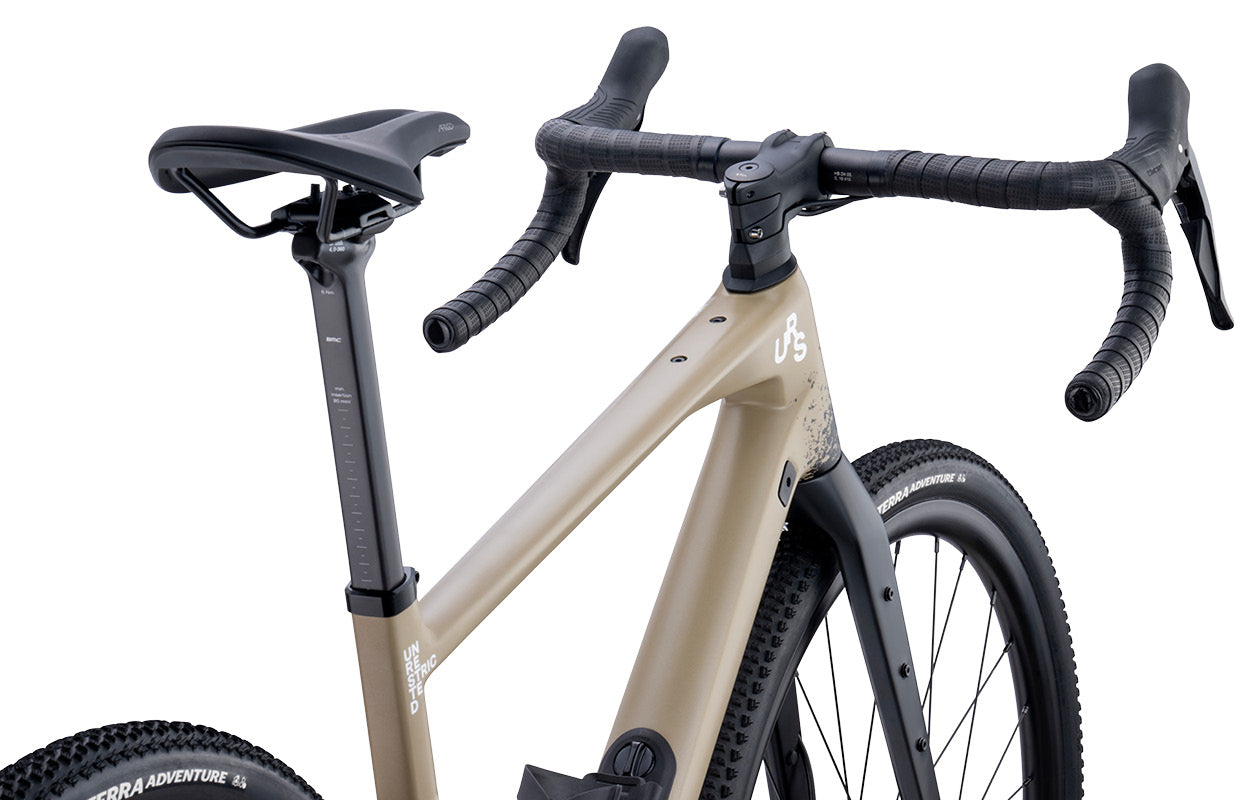

RSM01 for Integrated Cockpit System
The fully integrated RSM01 stem is designed around easy stack adjustability, giving you precise control over your fit. With its low weight, high stiffness, and seamless stealth routing, it brings pro-level performance to every setup.

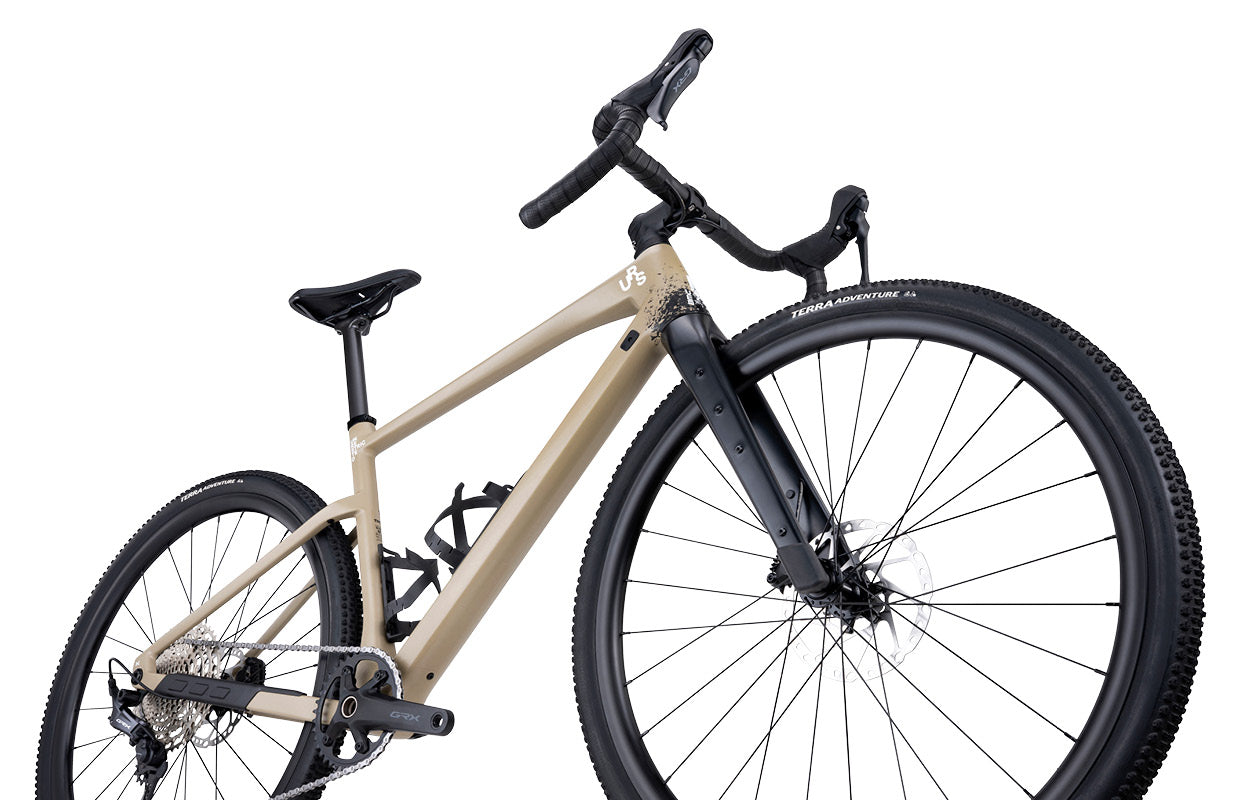

Gravel+ Geometry
For this generation of URS, we’ve redefined the geometry once again, going Gravel+ for capability and confidence. The long reach paired with a short stem makes for stable yet responsive handling, leaving you to focus on what’s over the horizon.
Technical Overview
Frameset
Frame:
URS Gen 2 | Advanced Carbon with Gravel+ Geometry | Tuned Compliance Concept Gravel | ICS Technology | Full Mount - UDH | Integrated Storage | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
URS Gen 2 | Advanced Carbon | Internal Brake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC RSM 01 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 16 | Alloy 6061 | Gravel Geometry | 115mm drop, 70mm reach, 16° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
URS | Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible
Saddle:
Fizik Vento Argo X7 | 150mm
Drivetrain
Crankset:
SHIMANO GRX (FC-RX610-1)
Chainrings:
38T
Cassette:
SHIMANO Deore (CS-M6100-12)
Cassette Size:
10-51T
Chain:
SHIMANO CN-M6100
Rear Derailleur:
SHIMANO GRX (RD-RX822)
Shifters:
SHIMANO GRX (BL-RX610 / ST-RX610)
Gears:
1 x 12
Bottom Bracket:
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Brakes
Brake Levers / Calipers:
SHIMANO GRX (BR-RX410)
Rotors:
SHIMANO SM-RT64 | Centerlock
Rotor Size (F/R):
180 / 160mm
Wheels
Rims:
GR650 | Tubeless Ready | 26mm
Hubs (F/R):
SHIMANO HB-TC500-12 & FH-TC500-MS | Center Lock | 28H
Tires:
Continental Terra Adventure Trail Grip | Tubeless | 45mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
X-Cages │Storage Pouch
Additional Information
Tire Clearance:
47mm measured tire
Weight without Pedals:
10.1kg | Size M as pictured with all accessories
ASTM Classification:
Level 2
System Weight Limit:
120kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | <167 | 165-170 | 168-178 | 176-188 | >188 |
| Reach | 390 | 400 | 410 | 420 | 430 |
| Stack | 560 | 560 | 580 | 610 | 640 |
| Bar Drop | 115 | 115 | 115 | 115 | 115 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 390/449 | 390/449 | 410/469 | 410/469 | 430/489 |
| BB Drop | 76 | 76 | 76 | 76 | 76 |
| Crank Length | 165 | 165 | 170 | 170 | 172.5 |
| Fork Length | 405 | 405 | 415 | 415 | 415 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 |
| Front Center | 633 | 643 | 651 | 672 | 693 |
| Head Tube | 133 | 133 | 140 | 172 | 204 |
| Head Tube Angle | 69° | 69° | 69.5° | 69.5° | 69.5° |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Seat Angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| Seat Tube | 430 | 445 | 475 | 505 | 540 |
| Seatpost Length | 310 | 360 | 360 | 360 | 360 |
| Seatpost Offset | 0 | 0 | 0 | 0 | 0 |
| Standover Height | 727 | 735 | 758 | 778 | 795 |
| Stem Angle | -8° | -8° | -8° | -8° | -8° |
| Stem Length | 70 | 70 | 70 | 80 | 90 |
| Top Tube | 545 | 555 | 571 | 589 | 607 |
| Trail | 84 | 84 | 86 | 86 | 86 |
| Wheelbase | 1052 | 1062 | 1070 | 1091 | 1112 |
