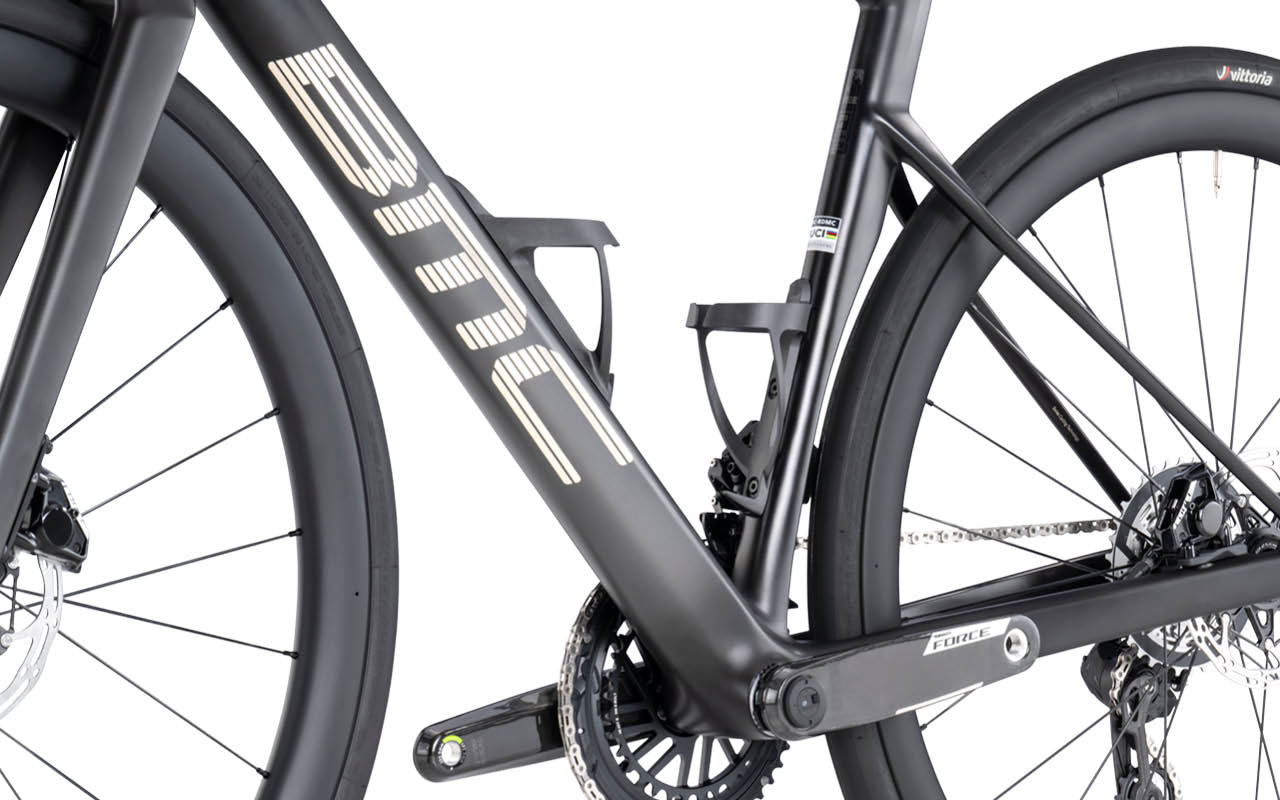

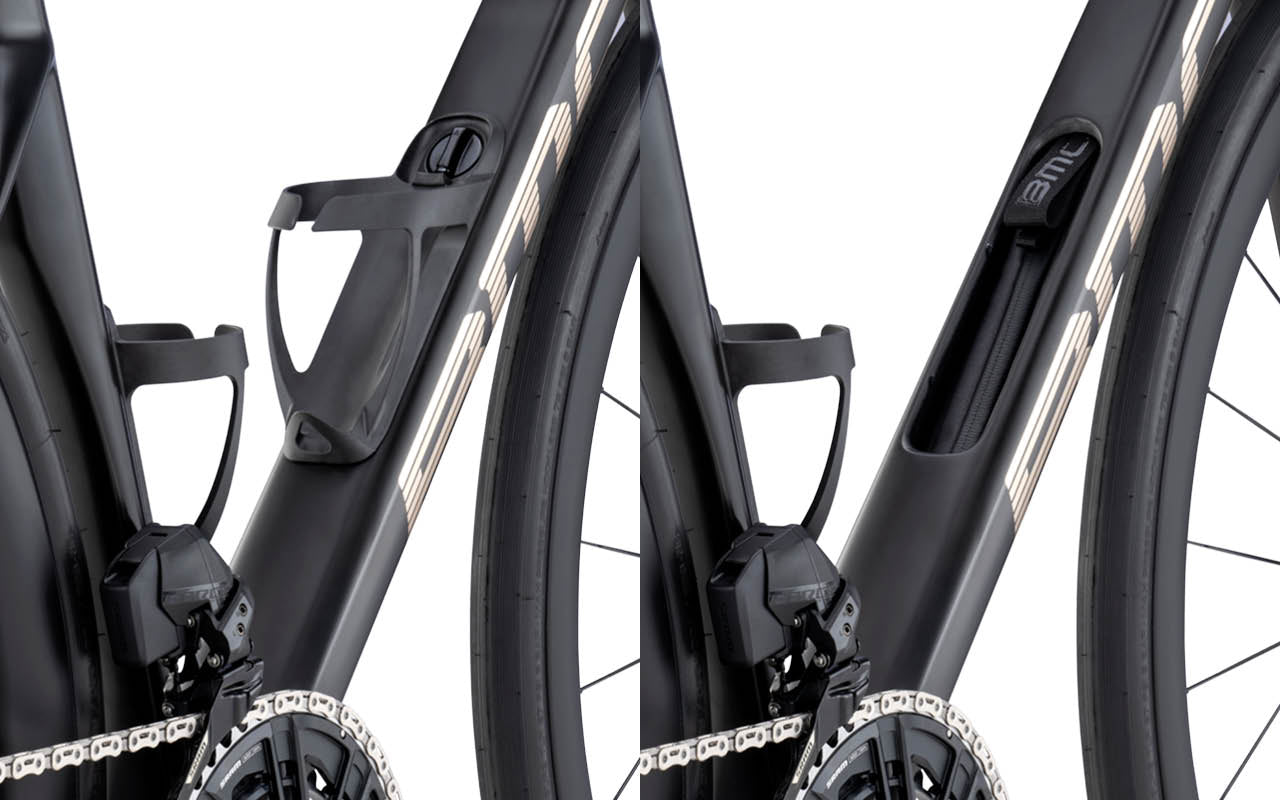

Almacenamiento en el tubo diagonal con portabidones integrados

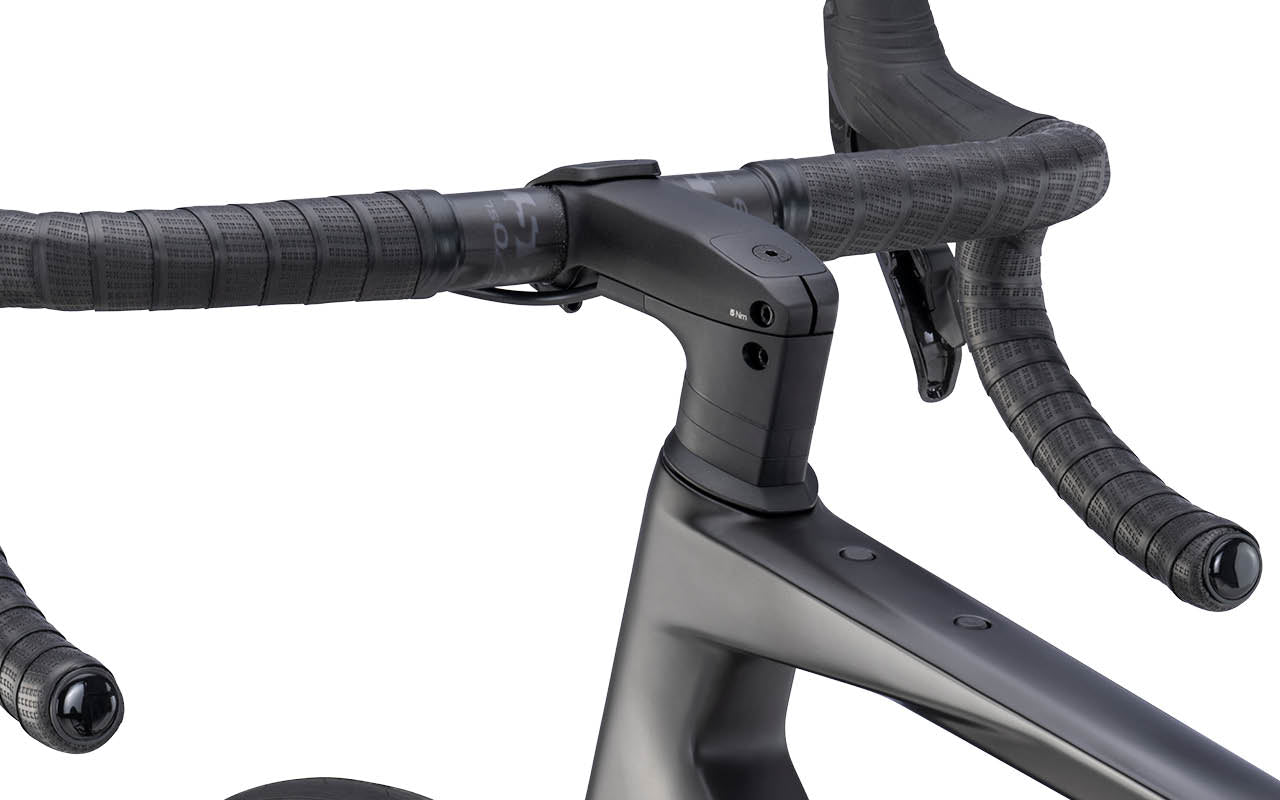

innovationPotencia ICS2
La potencia ICS2 está diseñada para para que el stack y el reach sean totalmente ajustables, lo que permite a los ciclistas crear la posición perfecta para sus necesidades.

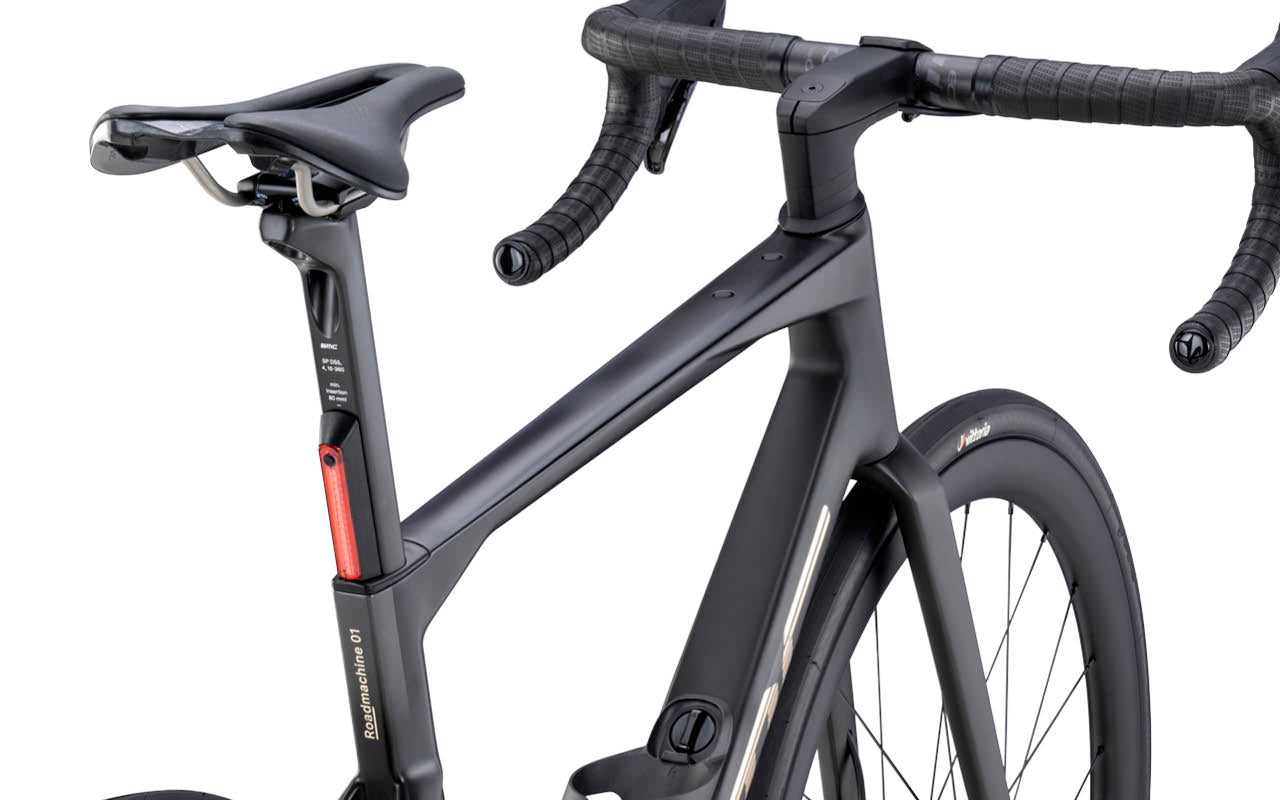

Luz trasera integrada
Cuando te enfrentas al tráfico, los túneles y las condiciones cambiantes, necesitas una luz trasera integrada ultracompacta que se pueda cargar mediante USB y se fije fácilmente de la tija del sillín.
TCC Endurance
La Roadmachine avanza en nuestra visión de la TCC Endurance ofreciendo una gran capacidad para neumáticos más anchos, un eje de pedalier más bajo, un ángulo del tubo de dirección adaptado, un mayor stack y unas de las vainas más cortas del mercado.
Descripción técnica
Cuadro
Cuadro:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
Horquilla:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology stealth cable routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) 45mm offset (Size 54-61)
Cockpit
Potencia:
BMC ICS2 | Integrated Cockpit System Technology
Manillar:
Easton EC70 SL Carbon | 125mm drop, 80mm reach, 4° flare
Seat
Tija de Sillín:
Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Sillín:
Selle Italia Novus Boost Evo Superflow | TI316 Rail | 145mm
Transmisión
Platos y Bielas:
SRAM Force AXS (FC-FRC-P-E1)
Platos:
46-33T
Potenciómetro:
SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1)
Cassette:
SRAM Force (CS-XG-1270-E1)
Tamaño del cassette:
10-36T
Cadena:
SRAM Force (CN-FRC-E1)
Desviador Delantero:
SRAM Force AXS (FD-FRC-E-E1)
Cambio Trasero:
SRAM Force AXS (RD-FRC-E-E1)
Manetas de Cambio:
SRAM Force AXS (ED-FRC-E1)
Marchas:
2 x 12
Pedalier:
SRAM Press Fit DUB
Frenos
Pinzas de Freno:
SRAM Force AXS (ED-FRC-E1)
Discos:
SRAM Centerline X | Centerlock
Tamaño del disco:
160 / 160mm
Ruedas
Llantas:
CRD-321 Carbon | Tubeless Ready | 35mm [or] CRD-321 SL Carbon | Tubeless Ready | 35mm [or] CE 40 SL Carbon | Tubeless Ready | 40mm
Bujes:
CRD-321: TXC-712 & TXC-1425 Centerlock [or] CRD-321 SL: TXC-812 & TXC-2406 Center Lock [or] CE 40 SL: TXC-812 & TXC-2406 Centerlock
Neumáticos:
Vittoria Corsa N.EXT | Tubeless | 32mm
Información Tubeless:
Tubeless Rim | Tubeless Tires
Accesorios
En la caja:
Integrated Rear Light 25 | Roadmachine Bottle Cages | Storage Pouch
Información adicional
Paso de rueda:
hasta «40 mm medidos» (holgura del kit del cuadro) pero limitados a «36 mm medidos» por el desviador delantero
Peso sin pedales:
7.9kg | Size 54 as pictured with all accessories
Clasificación ASTM:
Level 2
Límite de peso del sistema:
110kg
Reglamento relativo a la seguridad general de los productos (GPSR):
Instrucciones de seguridad GPSR (UE)
Persona responsable según el GPSR (UE)
Geometría
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <160 | 158-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle | 71.4° | 71.4° | 72.2° | 72.2° | 72.2° | 72.2° |
| Rear Center | 415 | 415 | 415 | 415 | 415 | 415 |
| Seat Angle | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Seat Tube | 414 | 461 | 488 | 508 | 529 | 550 |
| Seatpost Length | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 726 | 762 | 786 | 807 | 828 | 849 |
| Stem Angle | -12.5 | -12 | -12.5 | -12.5 | -12.5 | -12.5 |
| Stem Length | 80 | 90 | 100 | 100 | 110 | 110 |
| Top Tube | 520 | 537 | 546 | 559 | 571 | 581 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
